Reveal Warm Dim Cove/Pathway Plaster-In LED System 24V

Designed by Gregory KayRead Bio

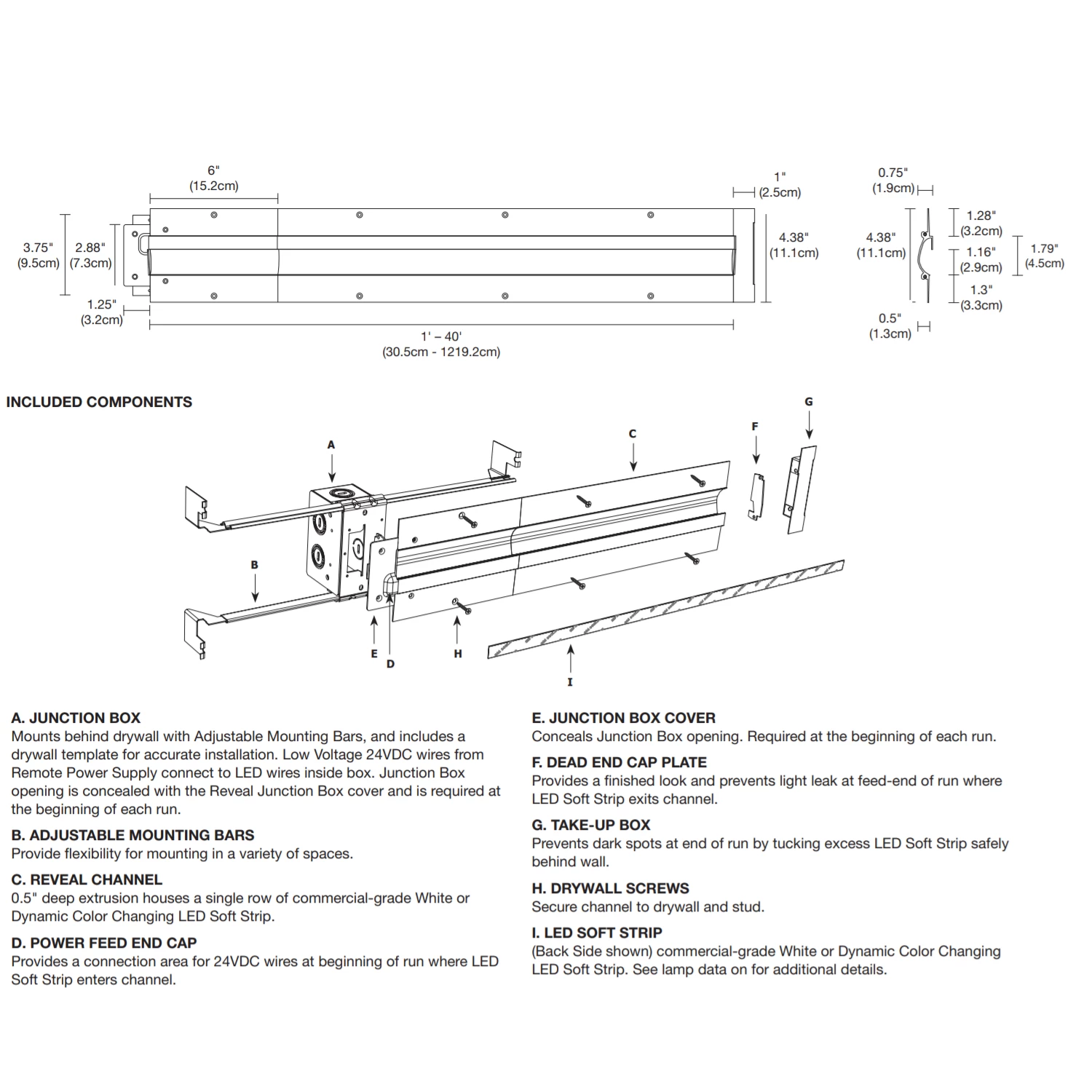

Reveal Cove/Pathway Warm Dim is a 24VDC linear LED system featuring a shallow, plaster-in aluminum extrusion no thicker than drywall. Includes 5 watt LED module per foot with choice of Warm Dim 27D (2700-2200K) or 30D (3000-2200K) color temperature. Sold in 1 foot increments up to 20 feet and may be field-cut to any length. System requires a Universal (UNI) power supply (dimmable with a Triac, electronic low voltage (ELV) or 0-10V dimmer), or electronic low voltage (ELV) power supply (dimmable with an electronic low voltage (ELV) dimmer), sold separately. System includes junction box, adjustable mounting bars, Reveal channel(s), power feed end cap, junction box cover, dead end cap, take-up box, drywall screws, and LED Soft Strip. Order additional Junction Box (RV-1RE-JBOX) separately to rough-in electrical wiring before drywall installation, sold separately. ETL listed. Title 24 compliant when used with a Universal (UNI) power supply. Fixture includes a 5 year pro-rated warranty. Required power supply, dimmer control and optional mounting accessories, sold separately. Product is built to order.
