Designed by Gregory KayRead Bio

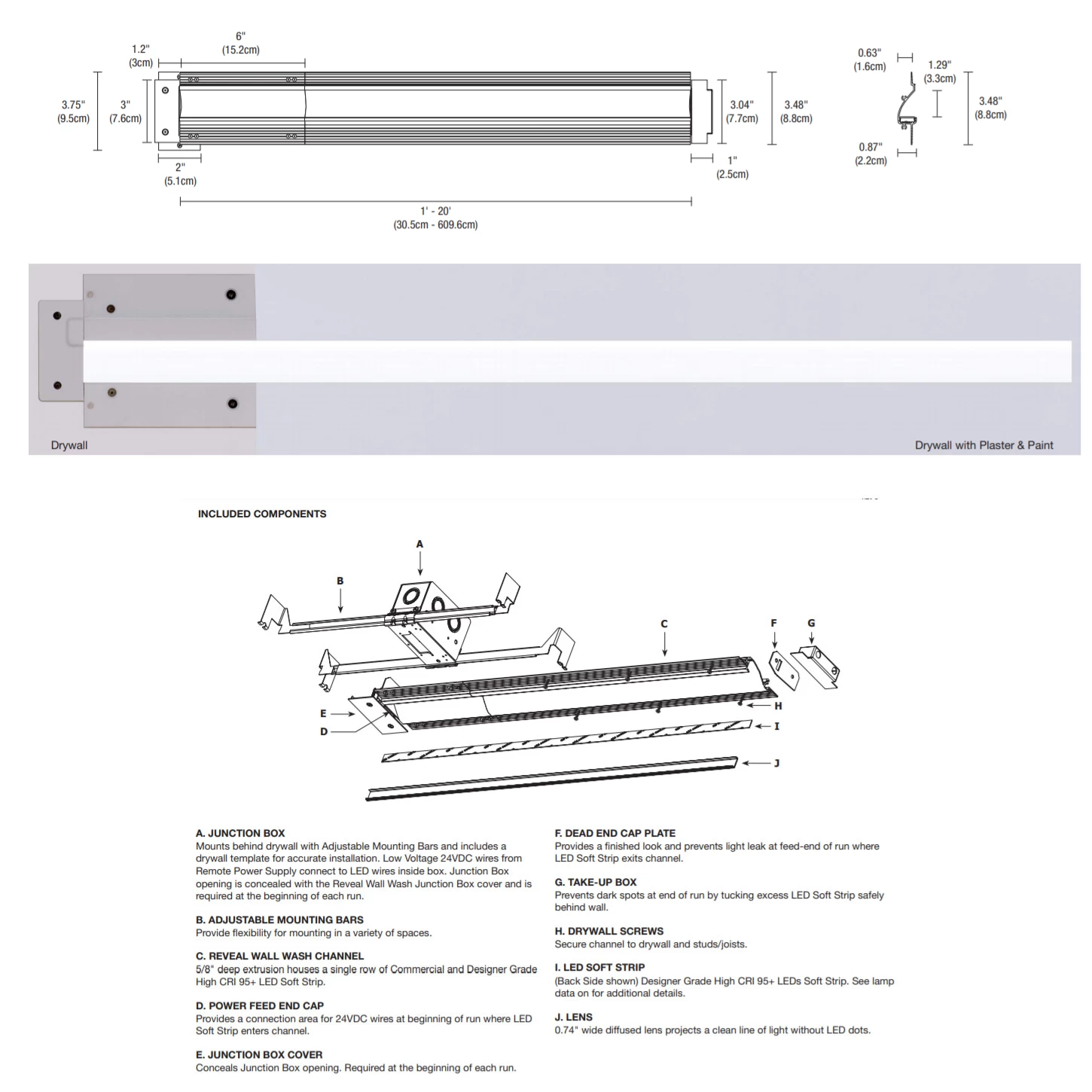

Reveal RGB Wall Wash 2 is a 24VDC linear LED system that washes the wall from the very top of the ceiling to the floor. Features a shallow, plaster-in aluminum extrusion no thicker than drywall. Position the Reveal 24 inches away from the projected wall, place the LED strip within the channel, connect to a low voltage power supply, then plaster over the edges and paint to match surrounding surface. Finish available in Satin Aluminum or White. Available in 5 watts per foot in RGB (Red-Blue-Green) color temperature. Sold in 1 foot increments up to 20 feet and may be field-cut to any length. Includes a 5 year pro-rated warranty. ETL listed. Suitable for damp locations. Product is built to order.
System requires a remote RGB power supply with DMX driver. Compatible RGB controls include: (CTP) Touch Screen Controllers with Power Supply, (CDP) Color Dial Controller with Power Supply, or (CDMX1-RGBW) RGBW Touch Controller. Required power supply and dimmer control sold separately.

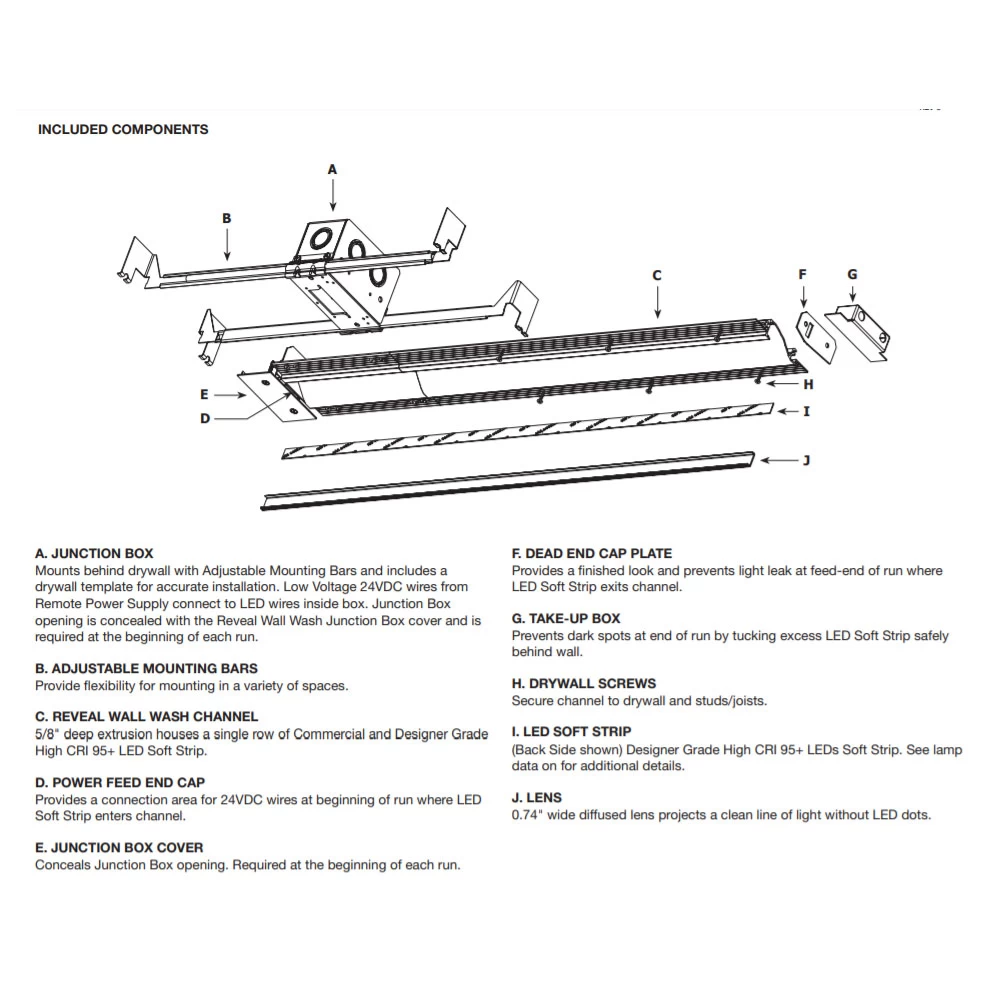

System includes junction box, adjustable mounting bars, Reveal Wall Wash channel(s), power feed end cap, junction box cover, dead end cap, take-up box, drywall screws, LED Soft Strip, and lens(es). Order additional Junction Box (RVWW2-1RE-JBOX) separately to rough-in electrical wiring before drywall installation, sold separately.
