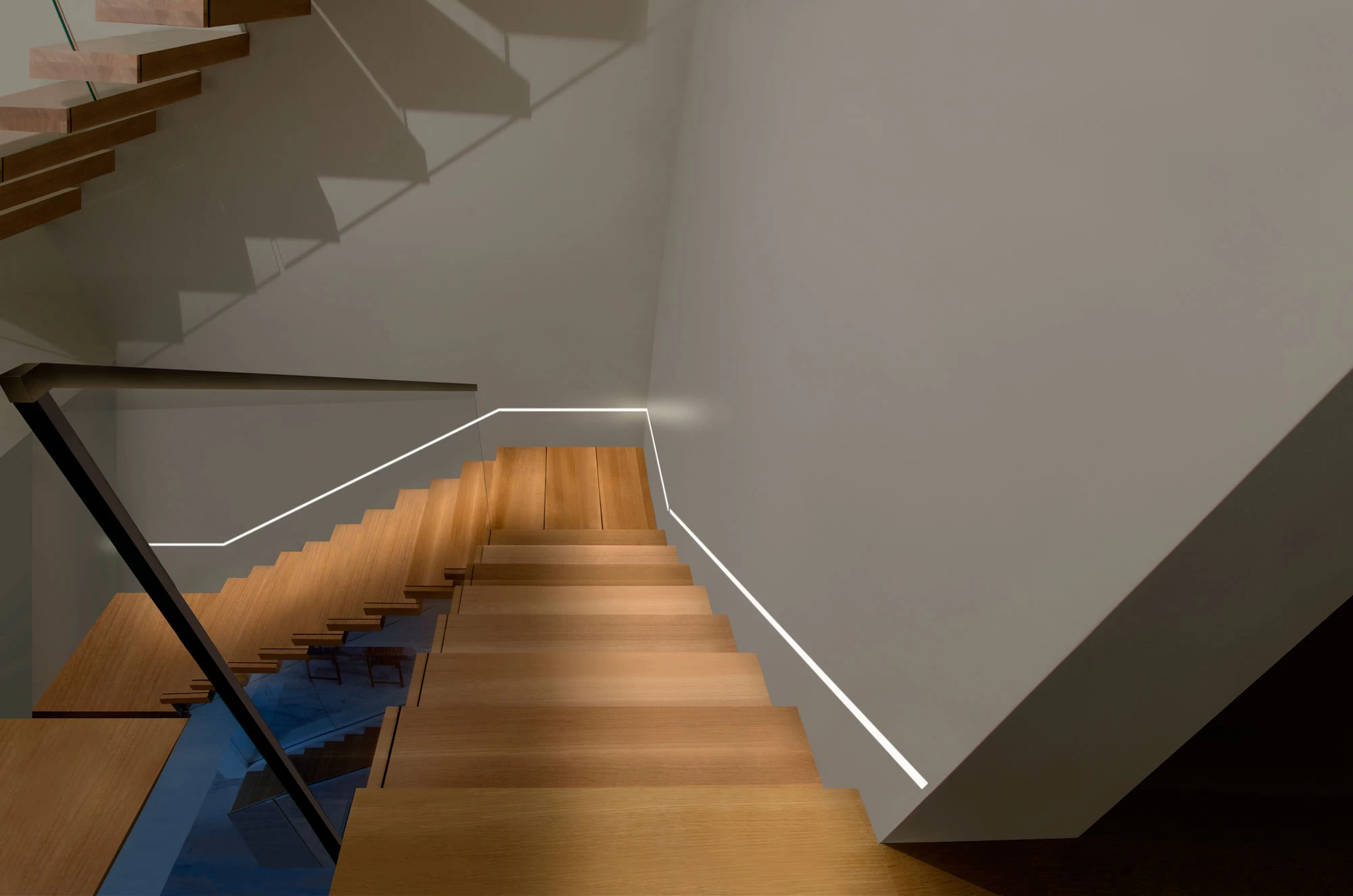

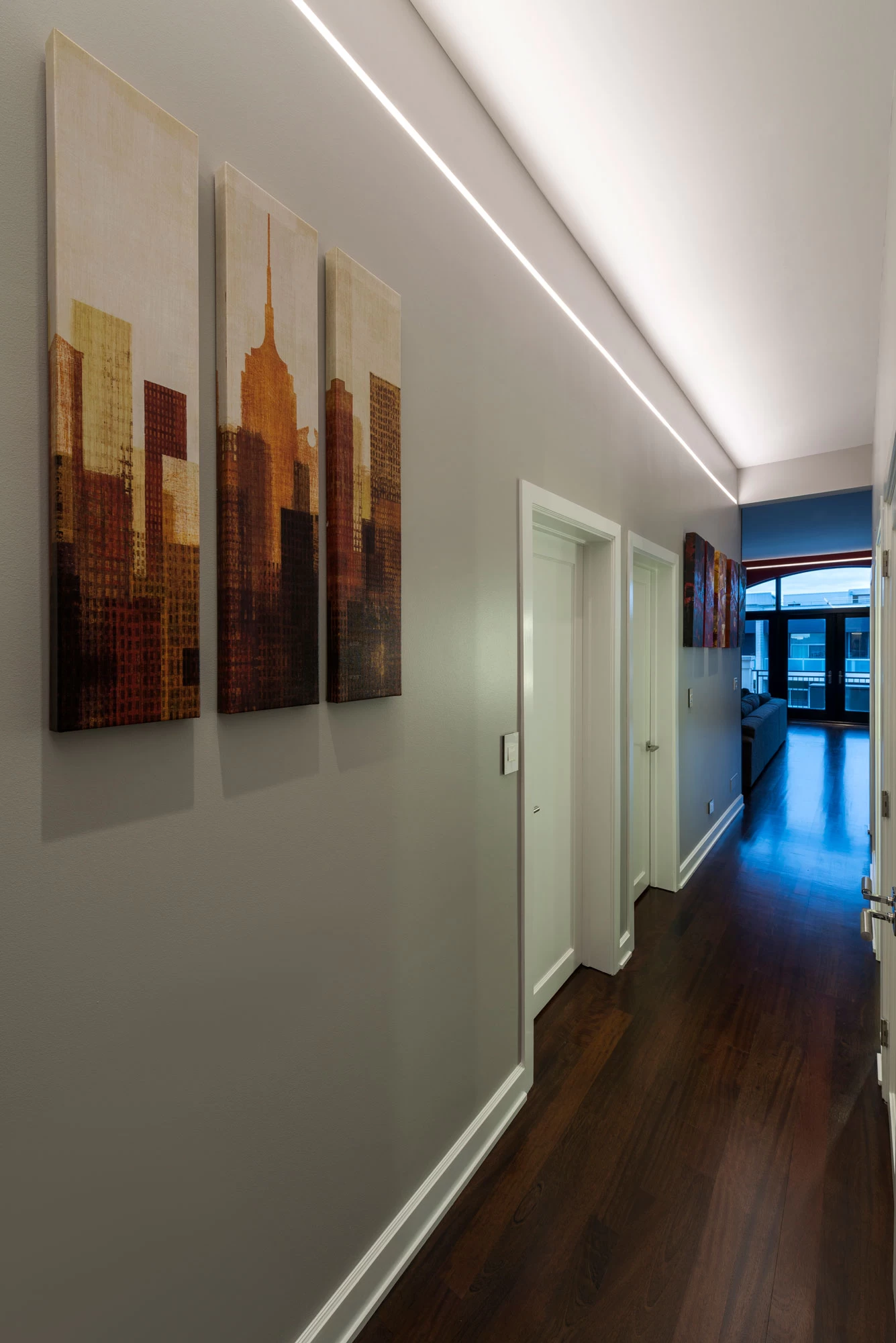

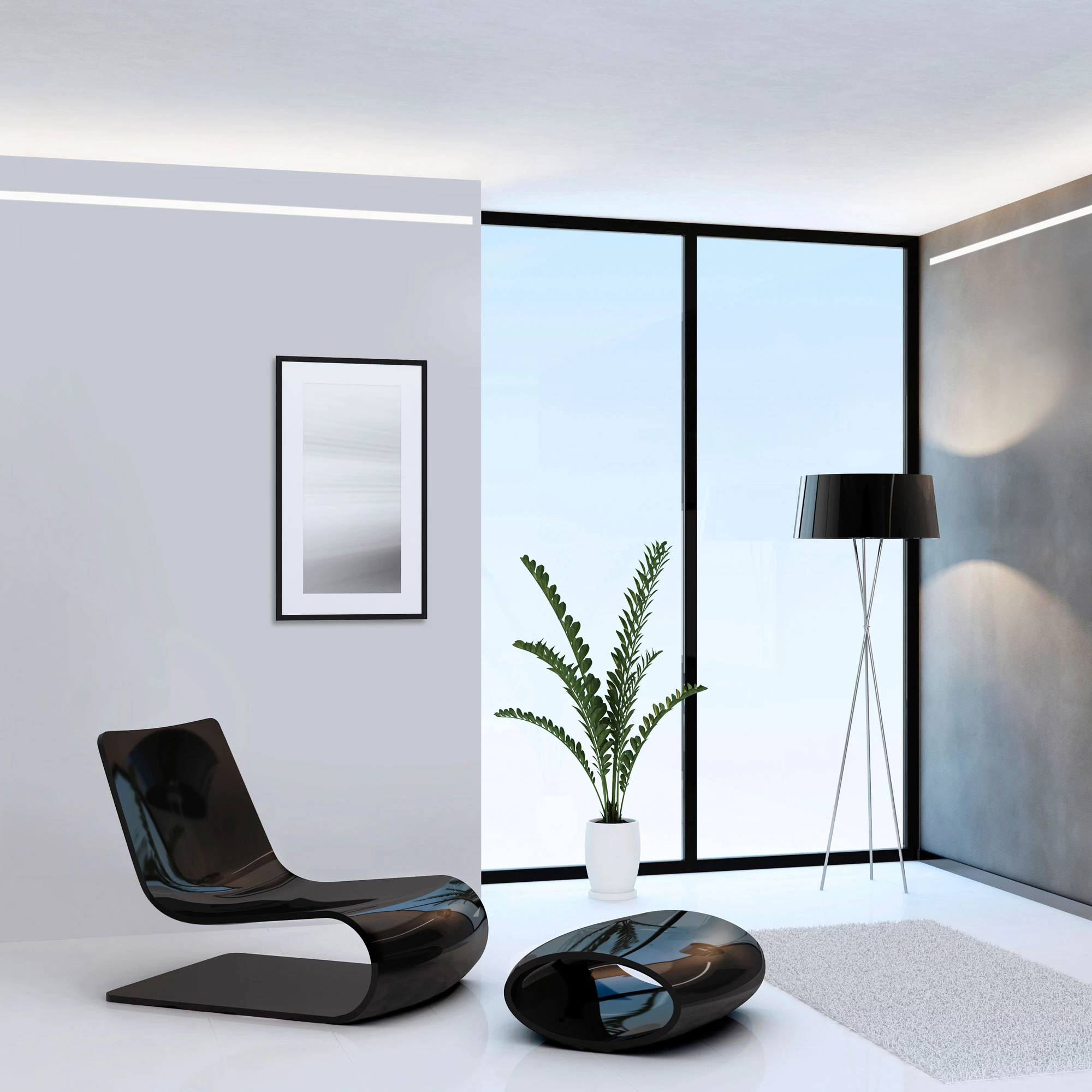

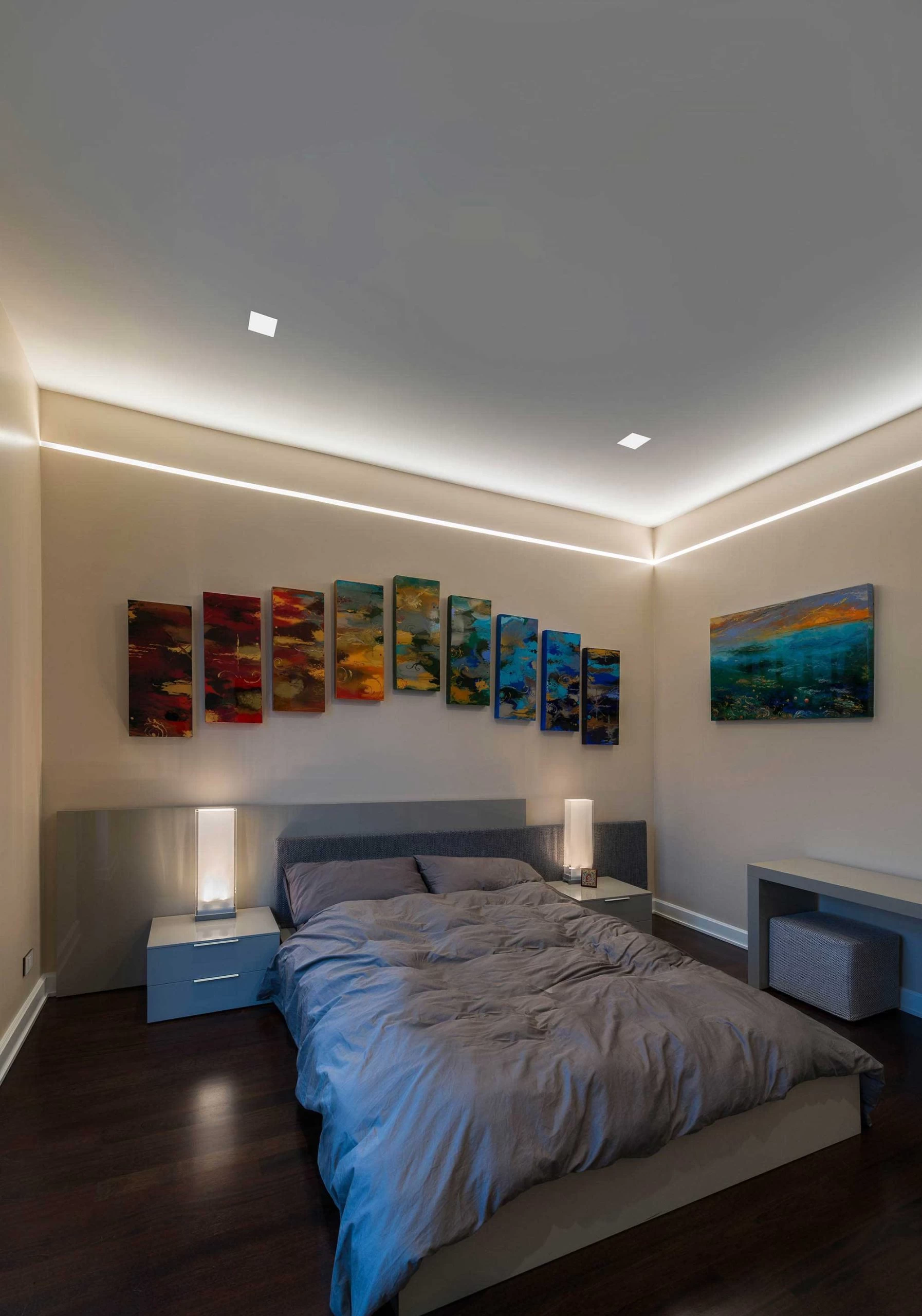

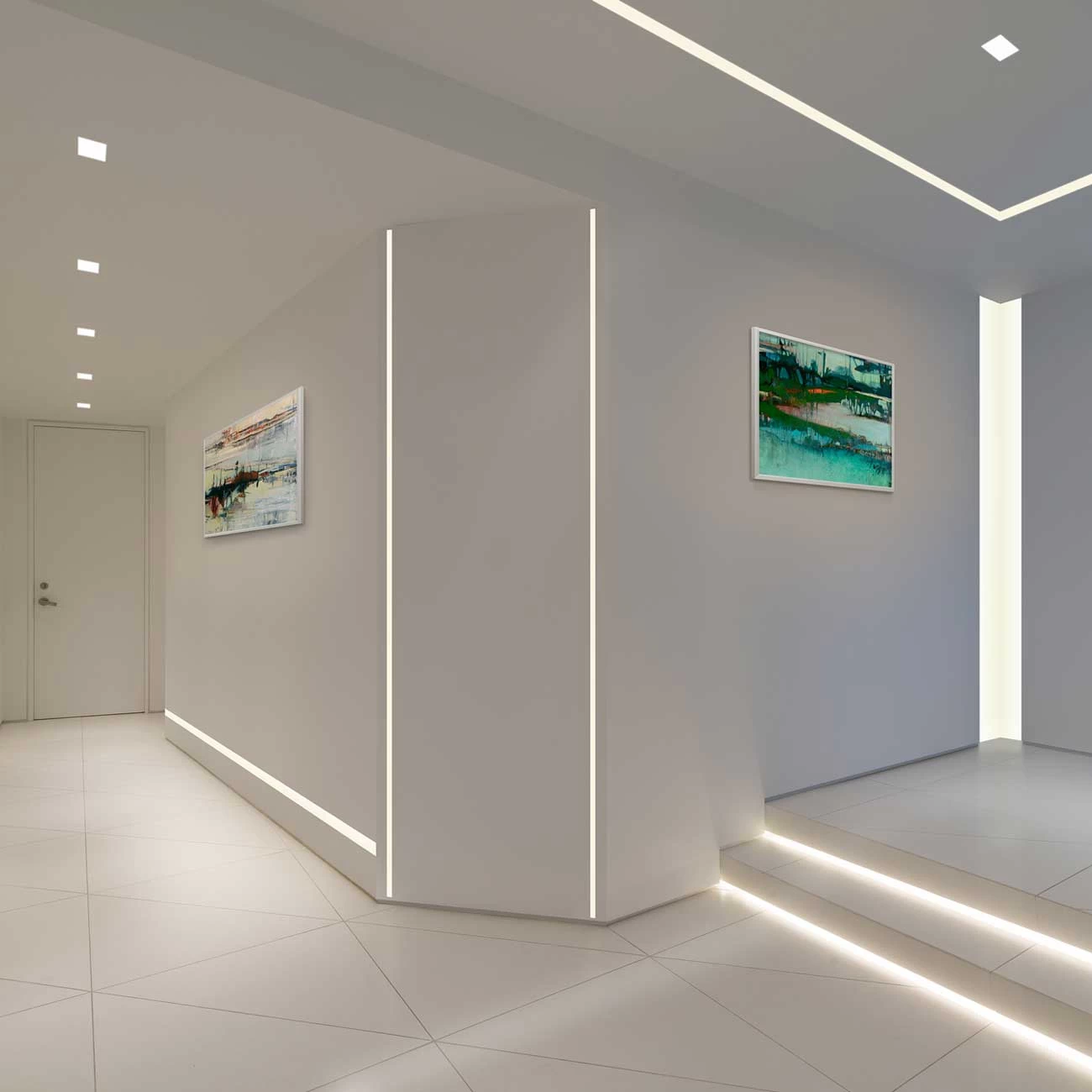

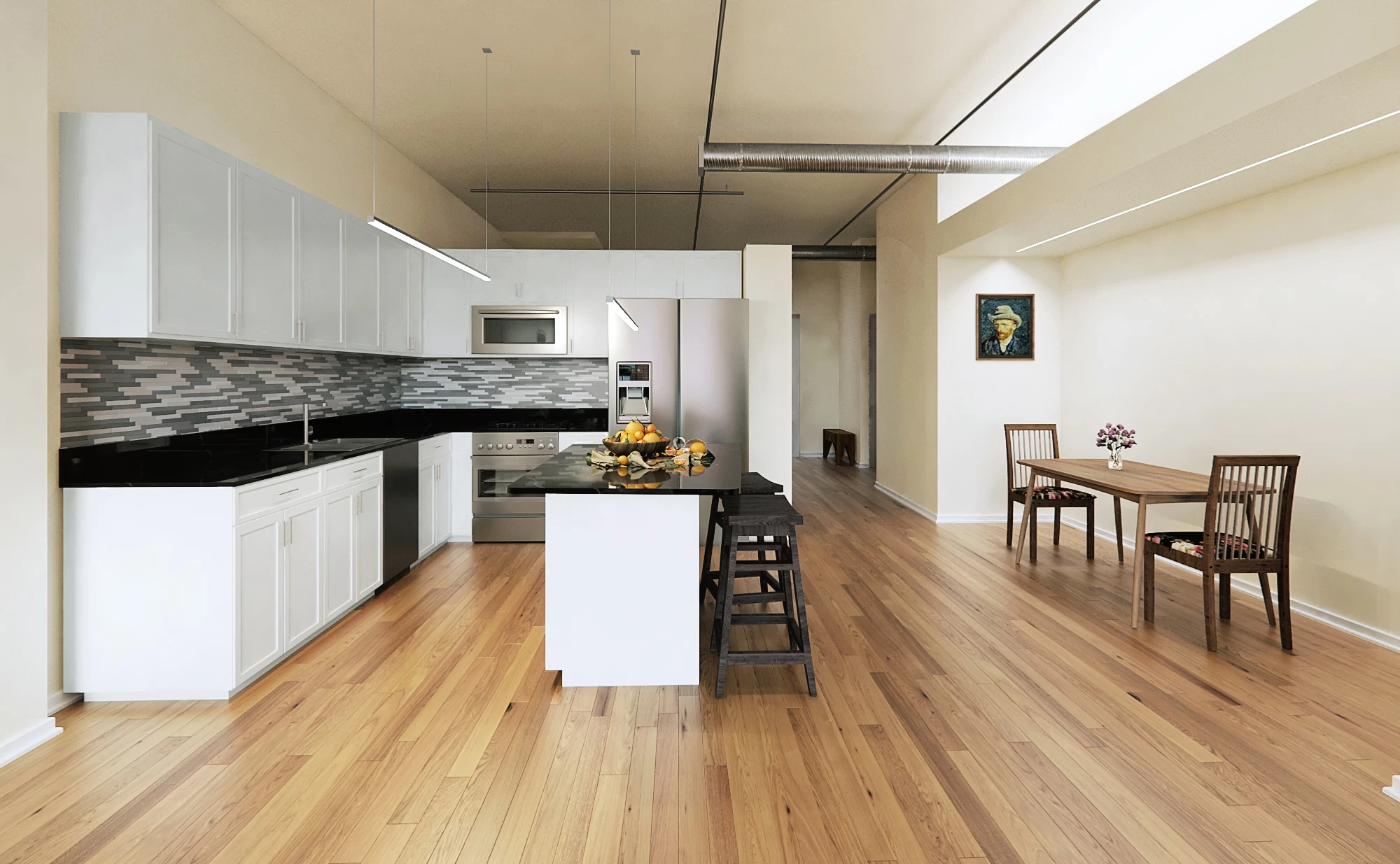

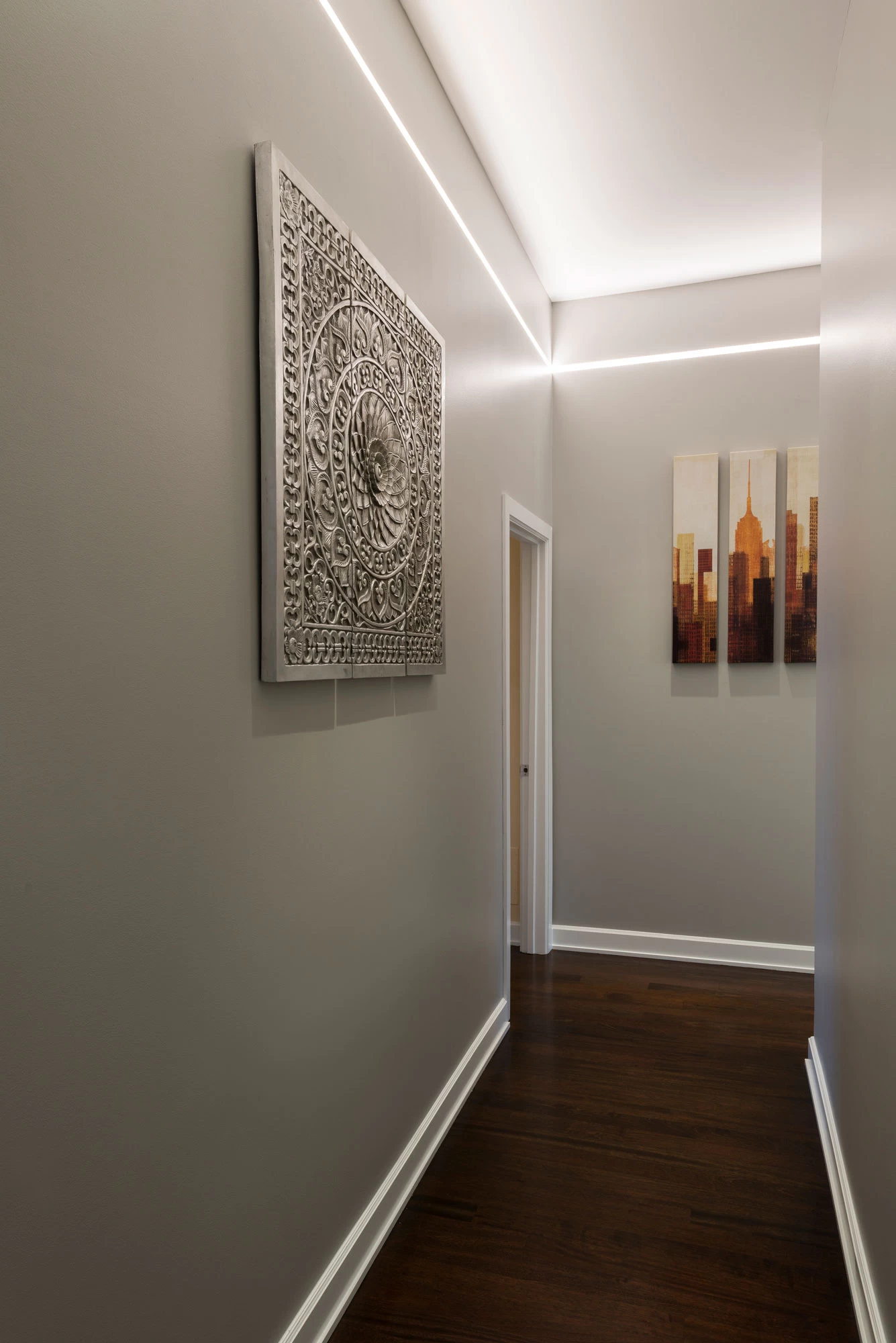

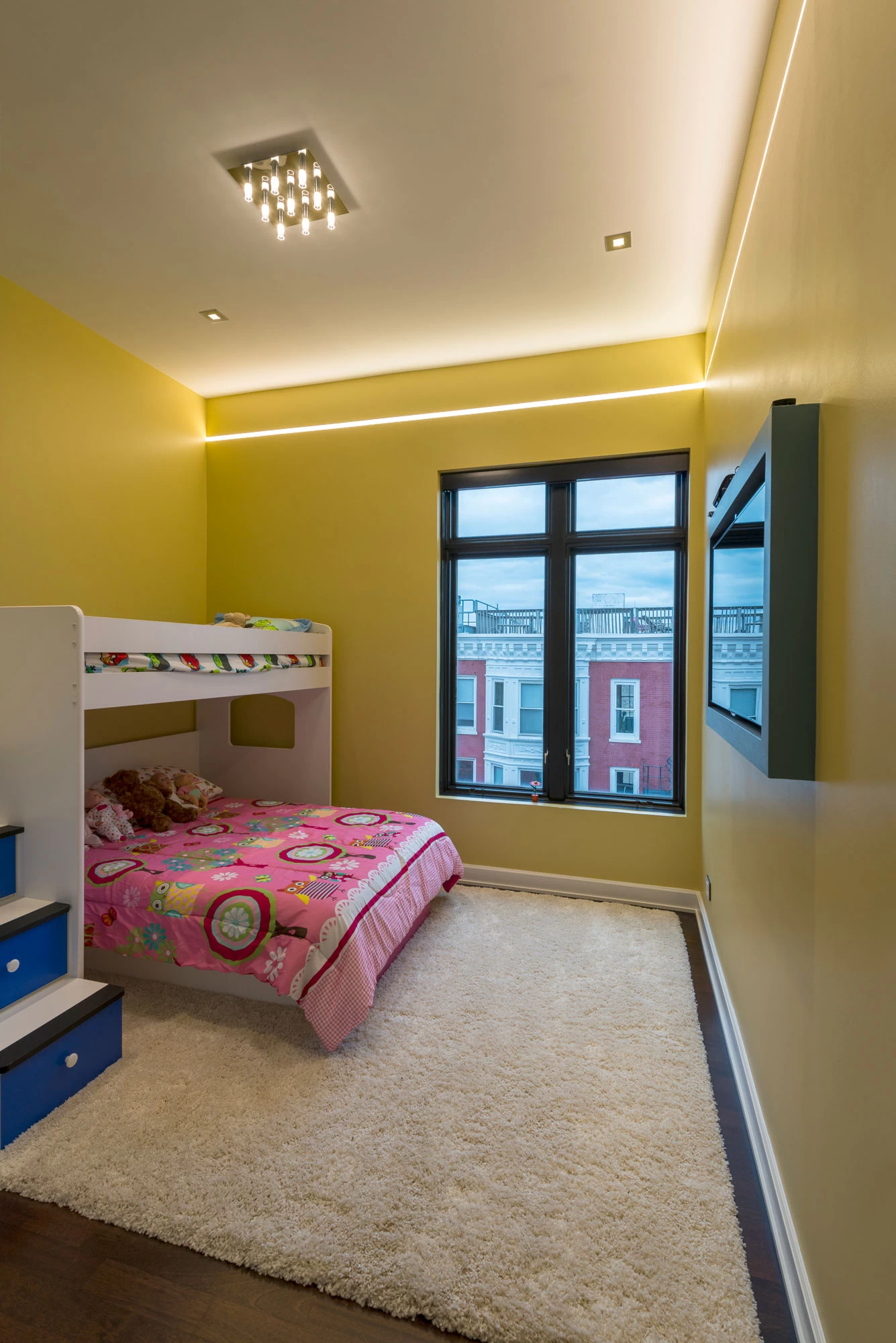

Reveal Cove/Pathway Plaster-In LED System 24V

Designed by Gregory KayRead Bio

Reveal Cove/Pathway, a 24VDC linear LED system, features a shallow plaster-in aluminum extrusion. May be secured directly to studs without joist modification and plasters into .50 inch or thicker drywall, or between studs. Sold in 12 inch increments up 40 feet (2 watt), 20 feet (5 watt), 12 feet (7 watt), and 10 feet (10 watt). May be field cut to any length. Available in a variety of finishes and wattages, and a spectrum of color temperature options. Order additional Junction Box (RV-1RE-JBOX) separately to rough-in electrical wiring before drywall installation, sold separately. ETL listed. Title 24 compliant when used with a Universal (UNI) power supply. Fixture includes a 5 year pro-rated warranty. Required power supply, dimmer control and optional mounting accessories, sold separately. Product is built to order.

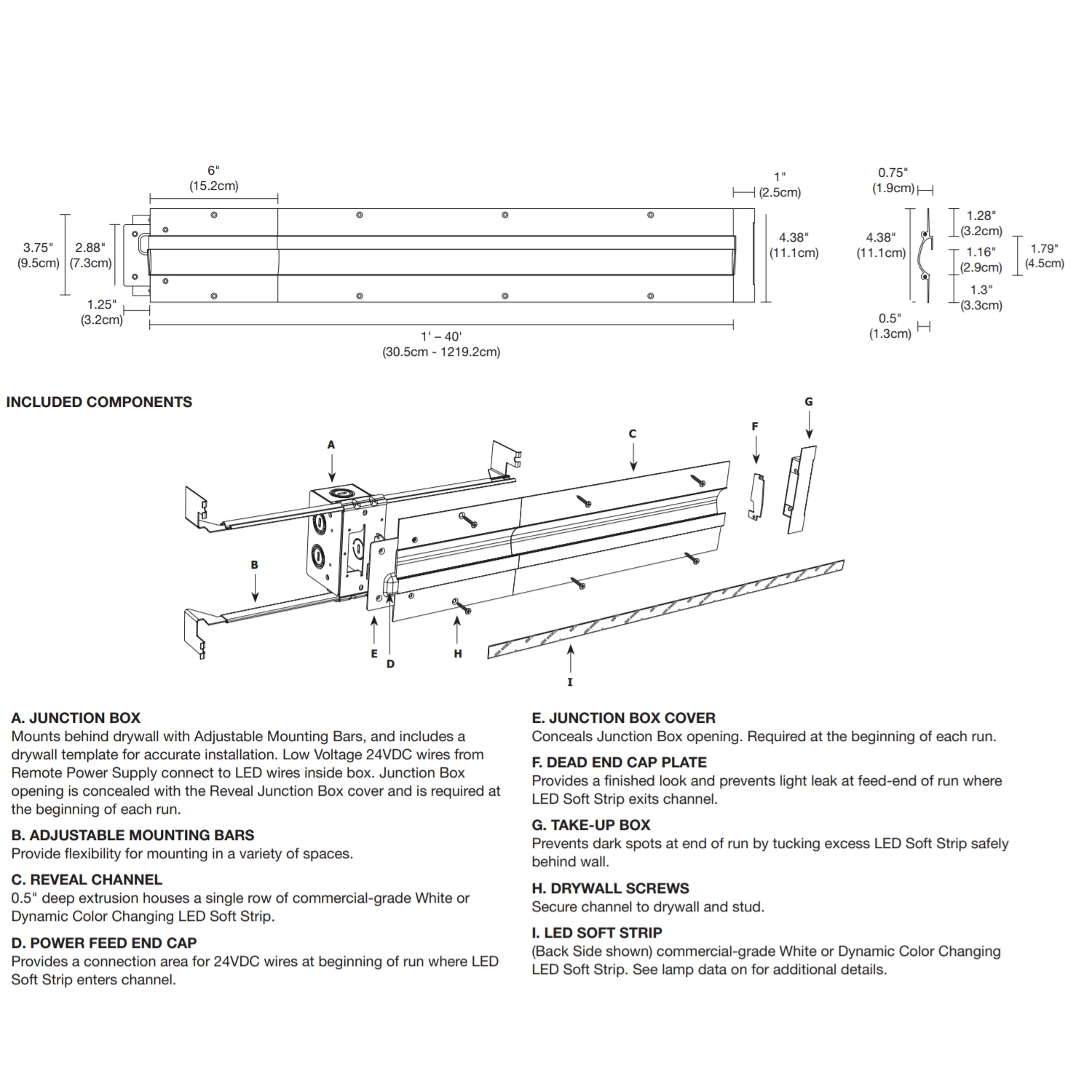

System requires a Universal (UNI) power supply (dimmable with a Triac, electronic low voltage (ELV) or 0-10V dimmer), sold separately. System includes junction box, adjustable mounting bars, Reveal channel(s), power feed end cap, junction box cover, dead end cap, take-up box, drywall screws, and LED Soft Strip.
